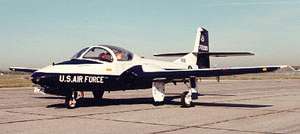

T-37 Tweet

Mission

The T-37 Tweet is a twin-engine jet used for training undergraduate pilot, undergraduate navigator and tactical navigator students in fundamentals of aircraft handling, and instrument, formation and night flying.

Features

The twin engines and flying characteristics of the T-37 give student pilots the feel for handling the larger, faster T-38 Talon or T-1A Jayhawk later in the specialized undergraduate pilot training course. The instructor and student sit side by side for more effective training. The cockpit has dual controls, ejection seats and a clamshell-type canopy that can be jettisoned.

The T-37 has hydraulically operated speed brakes, tricycle landing gear and a steerable nose wheel. Six rubber-cell, interconnected fuel tanks in each wing feed the main tank in the fuselage.

The T-37B has improved radio navigational equipment, UHF radio and redesigned instrument panels. Many foreign air forces fly the T-37B, including those of Thailand, Greece, Chile, Jordan, Turkey and Pakistan. Students from 12 North Atlantic Treaty Organization countries train in T-37B's at Sheppard Air Force Base, Texas. Flying the T-37C are the air forces of Portugal, Peru, Colombia and Greece, among others.

The T-37C is similar to the T-37B, but has provisions for both armament and wingtip fuel tanks. The plane can carry two, 250-pound (112.5 kilogram) bombs. Associated equipment includes computing gun sights and a 16mm gun camera. The aircraft can be fitted with cameras for reconnaissance missions.

Background

The T-37A made its first flight in 1955 and went into service with the Air Force in 1956. The T-37B became operational in 1959. All T-37A's have been modified to T-37B standards.

A contract was awarded in August 1989 to Sabreliner Corp. for the T-37B Structural Life Extension Program. The contract included the design, testing and production of kits, installed by a U.S. Air Force contract field team, which modified or replaced critical structural components for the entire fleet, extending the capability of the T-37 into the next century. More than 1,000 T-37s were built, and 507 remain in the U.S. Air Force inventory. All have been repainted in a distinctive dark blue and white to help formation training and to ease maintenance.

General Characteristics

Primary Function: Primary trainer in undergraduate pilot training, undergraduate navigator and tactical navigator training

Builder: Cessna Aircraft Co.

Power Plant: Two Continental J69-T-25 turbojet engines

Thrust: 1,025 pounds (461.25 kilograms), each engine

Length: 29 feet, 3 inches (8.9 meters)

Height: 9 feet, 2 inches (2.8 meters)

Maximum Takeoff Weight: 6,625 pounds (2,981 kilograms)

Wingspan: 33 feet, 8 inches (10.2 meters)

Speed: 315 mph (Mach 0.4 at sea level)

Ceiling: 35,000 feet (10.6 kilometers)

Range: 460 miles (400 nautical miles)

Armament: T-37B, none; T-37C has provisions for external armament

Unit Cost: $164,854

Crew: Two, student pilot and instructor pilot

Date Deployed: December 1956

Inventory: Active force, 507; ANG, 0; Reserve 0

POINT OF CONTACT

Air Education and Training Command, Public Affairs Office; 100 H Street, Suite 3; Randolph AFB, Texas 78150-4330; DSN 487-3946 or (210) 652-3946.
